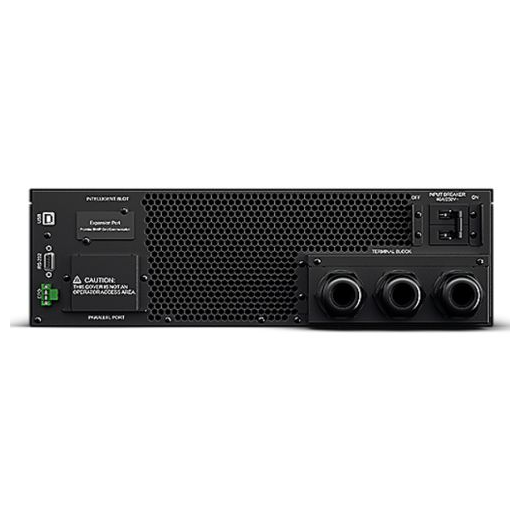

CyberPower Online XL Smart App 6000VA Double Conversion 3U Rack/Tower UPS, 5400W, LCD Display, 1x Hardwire Terminal Block, Ext. Battery Module
£1,133.33 Excl. VAT
Description
CyberPower Online Rackmount XL Series, 6000VA/5400W, 1 x Hardwire Terminal Block, Business Software, Rack/Tower
CyberPower OLS6000ERTXL3U is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
Selected product is equipped with a Maintenance Bypass Switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.
- Online (Double Conversion) UPS Topology
- UPS Parallel Expansion
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- LCD Status Display
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- ECO Mode
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
Technical Information
Type
Rackmountable UPS
UPS Topology
Online Double Conversion
Maximum Capacity
6000VA / 5400W
Battery Type
–
Typical Protection
Surge Suppression: 445 Joules
EMI/RFI Filtration
EMI/RFI Filtration
Inversion
Pure Sine Wave
Transfer Time
0 ms
Battery Protection
Overload Protection:
Internal Current Limiting, Circuit Breaker, Fuse
Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode):
105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Overload Protection (Battery Mode):
105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec
Overload Protection (Bypass Mode):
125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Input Voltage
Nominal Input Voltage: 230 Vac
Input Voltage Range: 110 ~ 276 Vac
Input Voltage Range: 110 ~ 276 Vac
Adjustable Voltage Range:
0~80% Load for 110 ~ 276 Vac
0~100% Load for 176 ~ 276 Vac
Output Voltage
208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
Recharge Time
–
Runtime
–
Interfaces
Serial Port
USB Port
SNMP/HTTP Network Slot
EPO Port
Input Terminal Block
Output Terminal Block
Parallel Port
USB Port
SNMP/HTTP Network Slot
EPO Port
Input Terminal Block
Output Terminal Block
Parallel Port
Visual Indicators
LCD Panel:
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control:
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators:
Line Mode, Battery Mode, Bypass Mode, UPS Fault
Audible Indicators
Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Environment
Operating Temperature: 32 ~ 104°F
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 90 %
Operating Elevation: <1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature: 5 ~ 113 °F
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation: 1603 BTU/hr
Audible Noise at 1.0M from Surface of Unit: 38.5~57.5 dBA
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 90 %
Operating Elevation: <1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature: 5 ~ 113 °F
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation: 1603 BTU/hr
Audible Noise at 1.0M from Surface of Unit: 38.5~57.5 dBA
Dimensions
(WxHxD) 438 x 130.5 x 680 mm
Weight
17.5 kg
Software
PowerPanel Business (Recommended)
Additional Features
See Overview
Accessories
Rackmount Rail
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
Screw Kit
USB Cable
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
Screw Kit
USB Cable
Package Type
Retail
Package Weight
25.8000 kg
Warranty
2 Years – direct with CyberPower
Full Box Quantity
1
