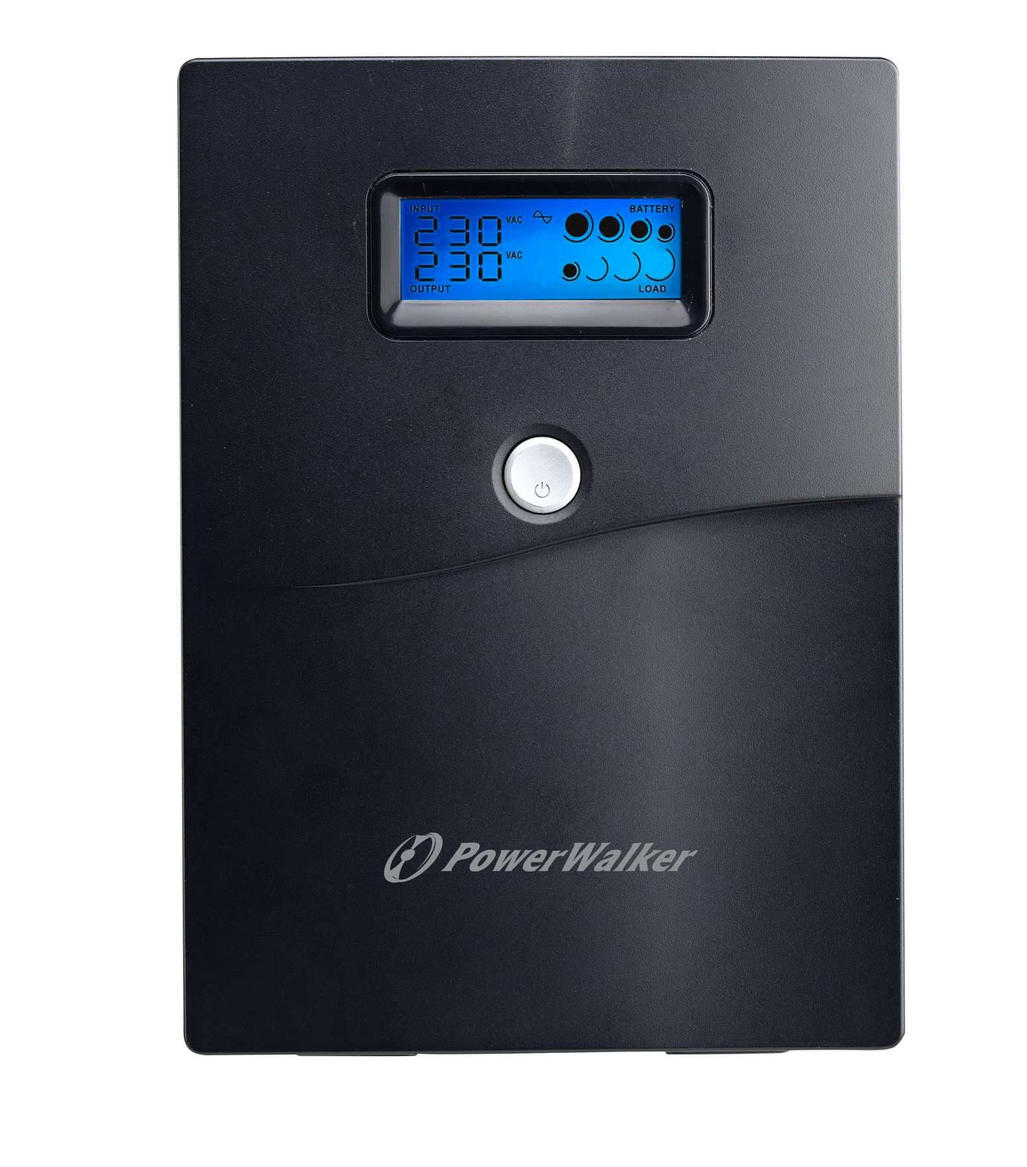

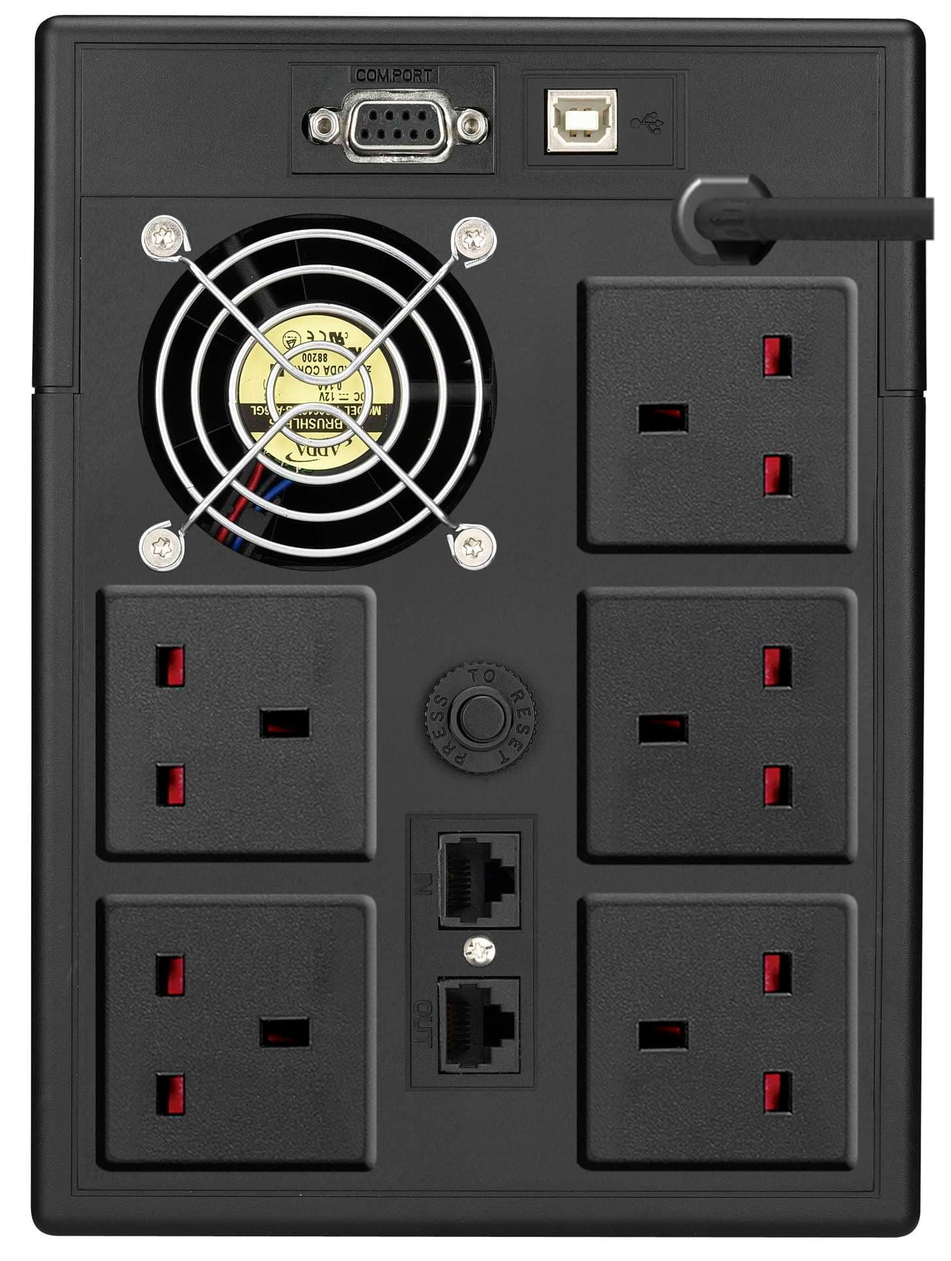

PowerWalker VI 3000 SCL UK Outlets with LCD Display
Featuring
- Human Interface Device (HID) compatible USB connection (no additional drivers needed).
- Comprehensive Display allows easy Monitoring and Access of UPS Status.
- Reliable and Economic Line-Interactive Series.
- Compact Size and High Performance for Home-Usage.
If you require any further assistance then please contact us at sales@upscentre.co.uk
£163.88 Excl. VAT
Description
The PowerWalker VI SCLÂ (Line-Interactive)Â series offers a simple yet effective solution for PCs and other home applications. It is available with different outlets and features a microprocessor-controlled automatic voltage regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes.
The series offers a convenient touch panel which allows to scroll through most useful monitored parameters. All UPSs in this series can be turned on directly from battery (cold-start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S native drivers thanks to HID.
Technical Information
| General Features | |
| Type | Line-Interactive (VI) |
| Phases (IN-OUT) | 1-1 |
| Form Factor | Tower |
| Power Capacity | 3000VA / 1800W |
| Output Power Factor | 0.60 |
| Input | |
| Input Voltage Range | 162-290 VAC |
| Frequency Range | 50Hz or 60Hz (self-adaptive) |
| Output | |
| Waveform | Simulated Sine Wave |
| VA | 3000 |
| Nominal Output Voltage | 230 VAC |
| Frequency (Battery Mode) | ±1Hz |
| Output Power Factor | 0.60 |
| Input & Output Connectors | |
| Input Connector | C20-UK |
| Type G (BS 1363) | 4 |
| Technical Details | |
| LINE Mode Efficiency [%] (Full Load) | 94.0 |
| Battery Mode Efficiency [%] (Full Load) | 60.0 |
| Transfer Time (AC / Line Mode to Battery Mode) [ms] | 2-6ms |
| Data Line Protection | RJ-11 Port, RJ-45 Port (100mbit) |
| Additional Features | Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator |
| IEC 62040-3 classification | VI-SY-333 |
| Batteries and Autonomy | |
| Batteries | 2x 12.0V/9.0Ah |
| DC Voltage | 2x 12.0V |
| Recharge Time | 6h to 90% |
| Full Load Backup Time [min] | 0.7 |
| Half Load Backup Time [min] | 4.0 |
| Charger | 1A |
| Recharge Time | 6h to 90% |
| Communication | |
| Communication | RS-232, USB Type B – for Monitoring Software |
| Software | ViewPower |
| Management and Environment | |
| Software | ViewPower |
| Communication | RS-232, USB Type B – for Monitoring Software |
| Noise Level | < 40dB |
| Fan Logic | Fan Off: Line Mode
Fan On: Battery Mode, AVR ON, Battery Charging |
| Temperature | 0°C – 40°C |
| Humidity | 0% – 90% RH (non-condensing) |
| IP | IP 20 |
| Logistics | |
| Package Weight [kg] | 14.5 |
| Product Height [mm] | 205 |
| Product Width [mm] | 146 |
| Product Depth [mm] | 397 |
| Product Weight [kg] | 11.5 |
| Package Content | Manual, UPS |
| Manual Languages | DE, IT, RU, PL, FR, ES, PT, EN |
| EAN | 4260074982305 |
| Product Dimensions (DxWxH) [mm] | 397 x 146 x 205 mm |
