3P550I Eaton 3P Ellipse 550VA 330Watt IEC
Featuring
Built-in surge protection
Remote management monitoring (Optional CLOUD-PS Card)
Data backup through automatic shutdown (with our UPS Companion software)
Plug your equipment
Charge mobile devices whenever you need, using 3P’s choice of USB-A and USB-C charging ports.
Enjoy up to 12% more power than the previous Ellipse ECO models

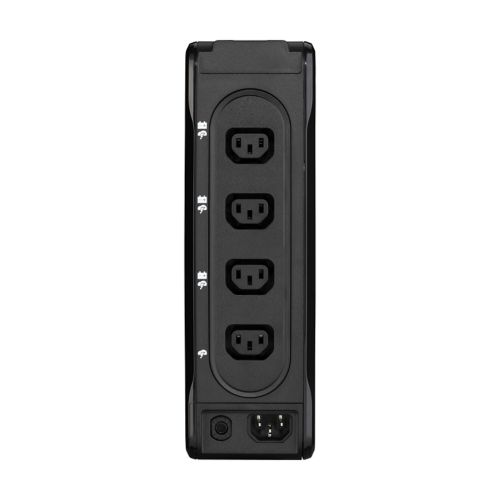

Outputs: (3) C13, (1) C13 surge only, Tower
Warranty is 3 years on UPS & 2 Years On Battery
For further information, please do not hesitate to contact us on 0330 043 2025 or email sales@upscentre.co.uk
£70.05 Excl. VAT
Description
The 3P Ellipse UPS is Eaton’s latest addition to its power protection solution portfolio. Sleek, attractively designed and silent in operation, this compact UPS offers an exceptional user experience for backup power in both residential and small business settings. 3P’s up to 12% power increase over previous Ellipse ECO UPS units translates into more applications protected for a wider range of devices – from home entertainment systems to high-performance PCs. At the same time, a convenient choice of local plug outlets, including FR, DIN/IT and IEC options, makes for easy adaptability in different territories. Easy cloud connection via optional CLOUD-PS card – a compelling feature for business applications – transforms 3P into a remote monitoring UPS, enabling seamless, real-time access to status and notifications via mobile app or web browser.
Technical Information
General specifications
| Product Name |
Eaton 3P Ellipse UPS
|
| Catalog Number |
3P550I
|
| Model Code |
Eaton 3P Ellipse 550 IEC
|
| EAN |
3553340621260
|
| Product Length/Depth |
235 mm
|
| Product Height |
263 mm
|
| Product Width |
81 mm
|
| Product Weight |
3 kg
|
| Warranty |
3 year on electronics, 2 year on battery
|
| Compliances |
CE Marked
LVD Directive (CB) EMC Directive RoHS Directive WEEE Directive Packaging Directive Batteries Directive IEC 61643-11 |
| Certifications |
IEC/EN 62040-1
IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm |
Additional information
| USB interface |
No
|
| Construction type |
Free standing model
|
| Package contents |
|
| Phase (output) |
1
|
| Auto shutdown function |
No
|
| Color |
Black
|
| Efficiency at max. load |
97
|
| Rack mounting kit |
No
|
| Phase (input) |
1
|
| Surge protection |
Yes
|
Battery
| Battery type |
Sealed, lead-acid
|
| Runtime graph | |
| Battery quantity |
1
|
| Battery management |
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
|
| Battery rating |
12 V / 4.5 Ah
|
| Extended battery capability |
No
|
Communication
| Includes network card |
No
|
| Ethernet interface |
No
|
| User interface |
LED display
|
| Potential free switch contact |
No
|
| Expansion slots |
No
|
| Type of interface |
None
|
Electrical input
| Input connection |
C14
|
| Input nominal voltage |
230V default (220/230/240V)
|
| Nominal frequency |
50-60 Hz
|
| Input voltage range |
184-264 V (adjustable to 161-284 V)
|
| Input frequency range |
46-70 Hz
|
Electrical output
| Receptacle |
(3) C13, (1) C13 surge only
|
| Voltage |
230V
|
| Wattage |
330W
|
| Output power factor |
0.6
|
| Output voltage range |
184-264 V (adjustable to 161-284 V)
|
| Output nominal voltage |
230V default (220/230/240V)
|
| Feed type |
1
|
| Topology |
Offline
|
| VA rating |
550 VA
|
Environmental
| Altitude |
3000 m
|
| Noise level |
<25 dB at 1 meter
|
| Temperature range |
0° to 40°C (32° to 104°F)
|
| Relative humidity |
0 – 95 % (non-condensing)
|
