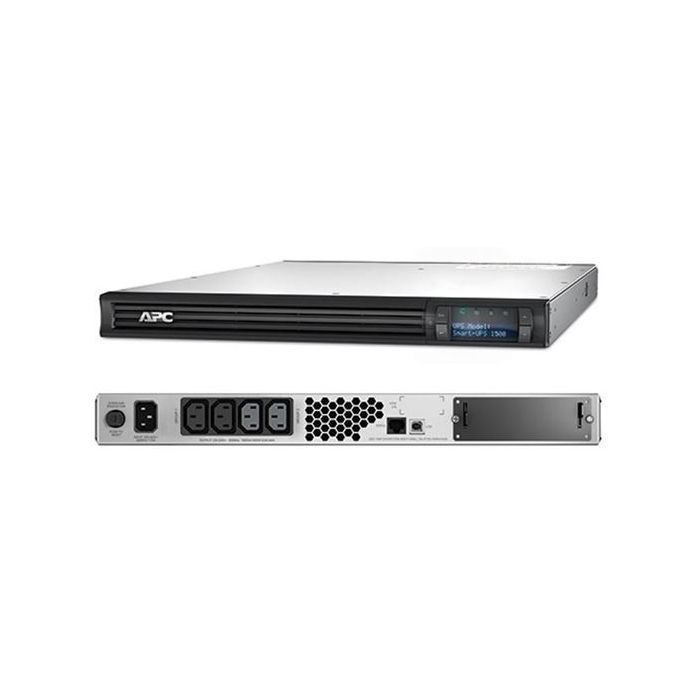

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartSlot, AVR, LCD
Features & Benifits
- APC SmartSlot: UPS communications port for slot-in APC remote monitoring and control cards
- Network-grade Power: provides a stable power output by filtering electrical noise, surge protection and automatic voltage regulation (AVR)
- High Efficiency Green Mode: to optimise energy efficiency and save on electricity and cooling costs
- APC SmartConnect: connect to a cloud-based UPS monitoring portal
- Communication Ports: serial, USB, and SmartSlot for UPS accessory cards
- Advanced Battery Management: temperature compensating charging to help extend battery life with advanced algorithms to recommend a replacement date for the UPS battery set
- Alphanumeric LCD Display: an intuitive interface provides detailed and accurate information including operating mode and efficiency, load VA/Watts/Amps, input/output voltage and frequency, battery capacity and runtime and energy usage, with the ability to configure the UPS locally from the front panel
- Emergency Power Off (EPO): provides for remote UPS shut-off in the event of a critical safety event such as a fire or other emergency (2,200VA and above)
- Battery Disconnect: provides a convenient way to disconnect the battery for transportation
If you would like to discuss your particular requirements, then please get in touch with us on 03300271309 or email sales@upscentre.co.uk
£541.67 Excl. VAT
4 in stock
Description
The APC SMT1500RMI1U Smart-UPS is a 1500VA, line-interactive, rack-mountable uninterruptible power supply (UPS) designed for IT professionals or network administrators to maintain business uptime and continuity.
The APC SMT1500RMI1U Smart-UPS 1U rackmount 1000W 1500VA UPS is trusted to protect critical data and equipment from power problems and supplies clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS units have extremely high efficiency at low, medium, and high load levels, making them ideal for today’s multi-core or virtualized servers with varying load consumption.
Ideal Applications Include
- IT servers and network devices
- Point of sale terminals
- Switches, hubs and routers
- VoIP telephone systems
If you would like to discuss your particular requirements, then please get in touch with us on 03300271309 or email sales@upscentre.co.uk
Technical Information
| Power | |
|---|---|
| Output power | 1000 W |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 98.7% |
| Output power capacity | 1.5 kVA |
| Ports & interfaces | |
| Cable length | 2.44 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Number of output IEC jumpers | 2 |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Status |
| Noise level | 46 dB |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 1000 W |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 98.7% |
| Noise level | 46 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery capacity | 293 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Typical backup time at half load | 16.6 min |
| Typical backup time at full load | 4.8 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 1U |
| Form factor | Rackmount |
| LED indicators | Status |
| Product colour | Black |
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Cable length | 2.44 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 24.1 kg |
| Width | 432 mm |
| Height | 44 mm |
| Depth | 665 mm |
| Package width | 575 mm |
| Package depth | 794 mm |
| Package height | 200 mm |
| Package weight | 29.1 kg |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Package width | 575 mm |
| Package depth | 794 mm |
| Package height | 200 mm |
| Package weight | 29.1 kg |
| Logistics data | |
| Products per pallet | 10 pc(s) |
| Certificates | |
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Warranty card | Yes |
| Software CD | Yes |
