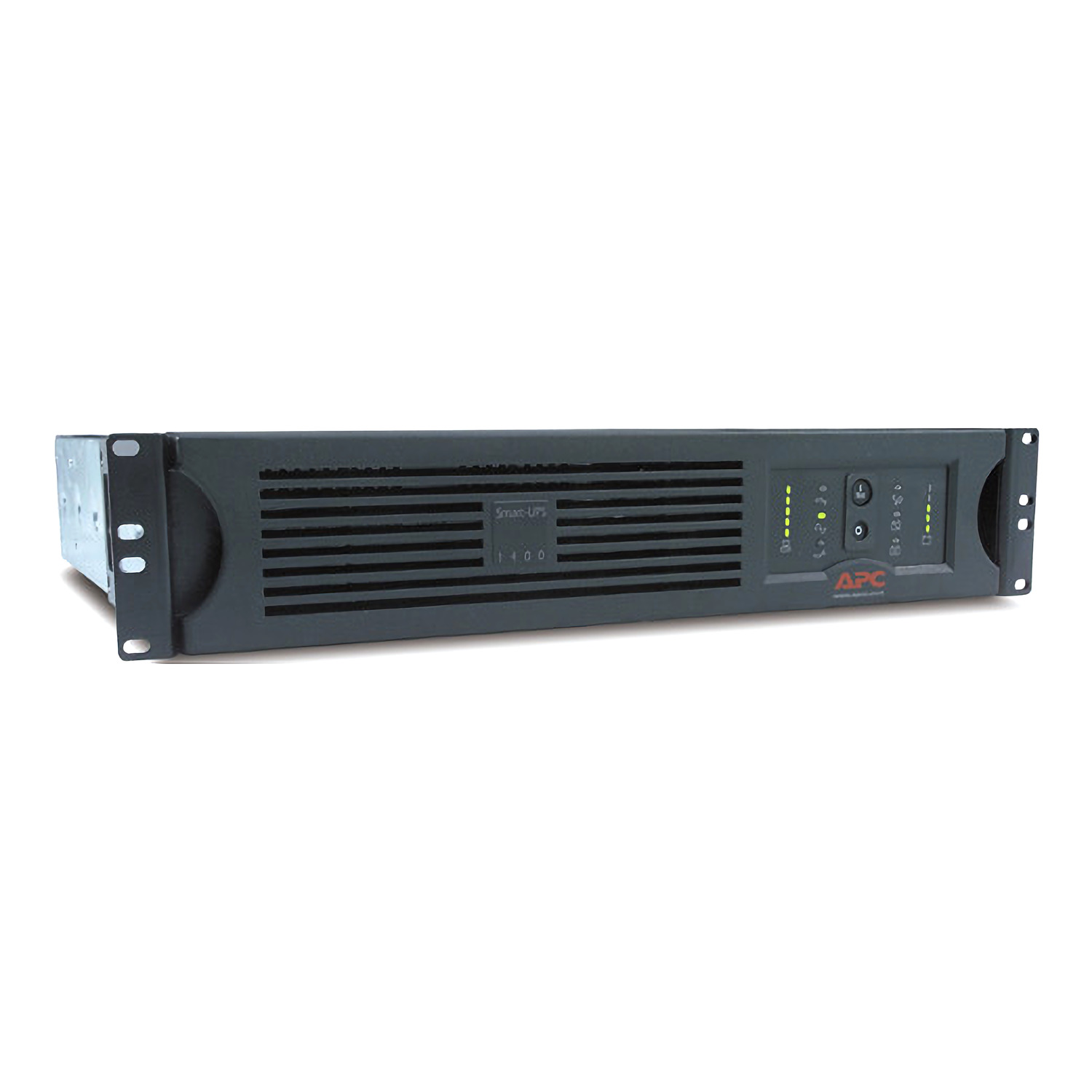

APC SUA1500RMI2U Rackmount UPS

Technical Information

Output

Output Power Capacity 980 Watts / 1500 VA
Max Configurable Power 980 Watts / 1500 VA
Nominal Output Voltage 230V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 47 – 53 Hz for 50 Hz nominal,57 – 63 Hz for 60 Hz nominal
Crest Factor up to 5 : 1
Waveform Type Sine wave

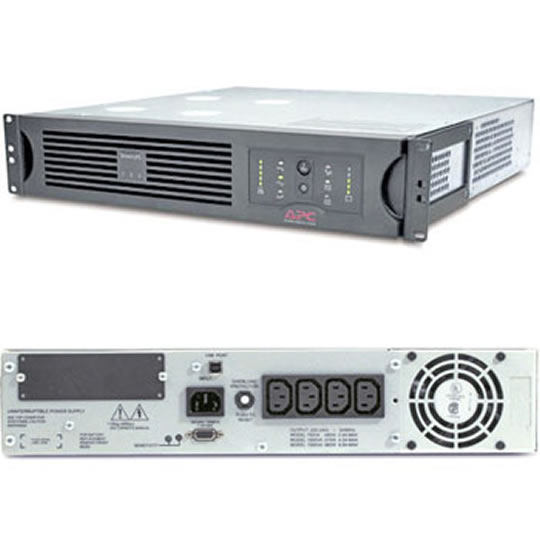

Output Connections (4) IEC 320 C13
(2) IEC Jumpers

Input

Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320 C14

Input voltage range for main operations 160 – 286V
Input voltage adjustable range for mains operation 151 – 302V

Batteries & Runtime

Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3 hour(s)
Replacement battery cartridge CURK24, RBC24
RBC™ Quantity 1
Typical Backup Time
at Half Load 26.5 minutes (490 Watts)
Typical Backup Time
at Full Load 7.4 minutes (980 Watts)
Runtime Chart Smart-UPS

Communications & Management

Interface Port(s) DB-9 RS-232,SmartSlot,USB
Available SmartSlot™ Interface Quantity 1
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional

Surge Protection and Filtering

Surge energy rating 480 Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height 89.00 mm
Maximum Width 432.00 mm
Maximum depth 457.00 mm
Rack Height 2U
Net Weight 28.64 KG
Shipping Weight 31.91 KG
Shipping Height 254.00 mm
Shipping Width 594.00 mm
Shipping Depth 603.00 mm
Color Black
Units per Pallet 16.00

Environmental

Operating Environment 0 – 40 °C
Operating Relative Humidity 0 – 95%
Operating Elevation 0-3000 meters
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95%
Storage Elevation 0-15000 meters
Audible noise at 1 meter from surface of unit 46 dBA
Online Thermal Dissipation 171 BTU/hr

Conformance

Regulatory Approvals C-tick,CE,EN 50091-1,EN 50091-2,TUV,VDE
