CyberPower Smart App OR1000ERM1U Line-interactive UPS – 1 kVA/600 W UPS
Featuring
- AVR
- 8 Hour Recharge
- 3.50 Minute Stand-by
- 230 V AC Input
- 230 V AC Output
If you require further information or assistance then please do not hesitate to contact us at 03300271309 or email sales@upscentre.co.uk or sales@upscentre.com
£321.50 Excl. VAT
Description
CyberPower OR1000ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated into the back office, server room, and data centre environment to ensure a reliable backup power supply during power failures. In addition, the rackmount/tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
If you require further information or assistance then please do not hesitate to contact us on 0330 027 1309 or email sales@upscentre.co.uk or sales@upscentre.com
Technical Information
| Height (Rack Units) | 1U |
| Colour | Silver |
Power Device |
|
|---|---|
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 165 – 271 V |
| Input Voltage Range (Adjustable) | AC 253 – 271 / 189 – 207 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |

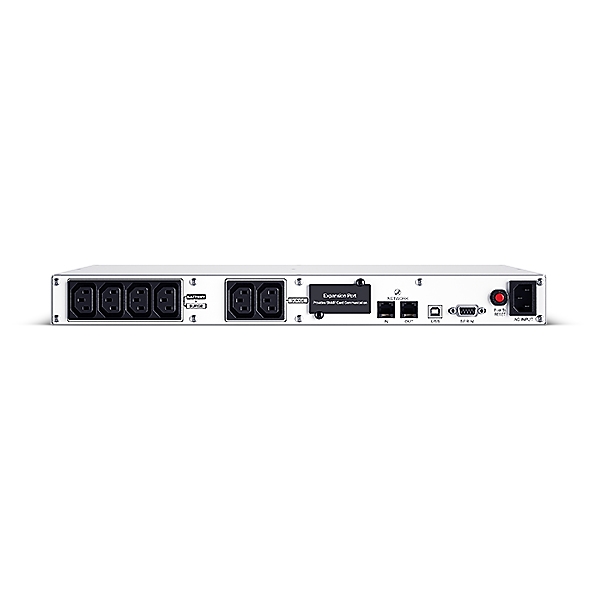

| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 (UPS and surge) ¦ 2 x power IEC 60320 C13 (surge) |
| Output Voltage | AC 230 V ± 10% – 50/60 Hz |
| Power Capacity | 600 Watt / 1000 VA |
| Dataline Surge Protection | Network/phone line – RJ-45/RJ-11 – 1 input line / 1 output line |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Energy Rating | 810 Joules |
| Circuit Protection | Circuit breaker |
| Power Factor (PF) | 0.6 |
Battery |
|
| Quantity | 1 |
| Technology | Lead Acid |
| Run Time (Up To) | 3.5 min at full load ¦ 14 min at half load |
| Recharge Time | 8 hours |
| Transfer Time | 4 ms |
Networking |
|
| Remote Management Interface | Ethernet, RS-232, USB |
Expansion / Connectivity |
|
| Interfaces | 1 x management (RS-232) – 9 pin D-Sub (DB-9) ¦ 1 x management (USB) – 4 pin USB Type B ¦ 2 x LAN – RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x SNMP |
Miscellaneous |
|
| Cables Included | USB cable – external ¦ Power cable – integrated – 1.83 m |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, GreenPower UPS Bypass Technology |
| Compliant Standards | RoHS |
Software / System Requirements |
|
| Software Included | PowerPanel Business Edition |
Environmental Parameters |
|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 – 95% |
Dimensions & Weight |
|
| Width | 43.3 cm |
| Depth | 38.9 cm |
| Height | 4.4 cm |
| Weight | 13.7 kg |
