Eaton 5E Gen2 UPS USB IEC 1200 VA 660 W
Features & Benefits
- Fanless Design For Quiet Protection
- 5E Gen2 batteries are permanently recharged (even when off)
- UPS can start without mains (cold start)
- Automatic battery test and battery replacement alarm
- Ensure peace of mind thanks to a two-year warranty
- Compact housing makes it easy to integrate into a home or office
If you would like to know more information or have any other questions, then please do not hesitate to contact us on 03300271309 or email sales@upscentre.co.uk
£116.66 Excl. VAT
Description
The Eaton 5E Gen2 1200 USB is an excellent choice for those looking for a high-quality reliable line-interactive UPS. With its 1.2 kVA capacity 660 W output power 4 AC outlets and USB connectivity this UPS is capable of protecting your electronic devices from power interruptions and surges. In addition its line-interactive topology ensures high-quality power protection.
Additional information
| Weight | 8.5 kg |
|---|---|
| Dimensions | 288 × 100 × 148 mm |
Technical Information
General specifications
Product Name
Eaton 5E Gen2 UPS
Catalog Number
5E1200UI
EAN
3553340704277
Product Length/Depth
330 mm
Product Height
180 mm
Product Width
133 mm
Product Weight
8.13 kg
Compliances
CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3
Product specifications
Special features
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
Type
UPS
Topology
Line-interactive
Form factor
Tower
Construction type
Free standing model
Color
Black
VA rating
1200 VA
Wattage
660 W
Rack mounting kit
No
Package contents
(2) IEC-IEC output cables
Quick start
Safety instructions
Surge protection
Yes
Internal bypass
No
Hot swap power
No
Auto shutdown function
Yes
Primary frequency – max
63 Hz
Primary frequency – min
45 Hz
Input connection
C14
Input nominal voltage
230V default (220/230/240V)
Nominal frequency
50/60 Hz
Input frequency range
45-63 Hz

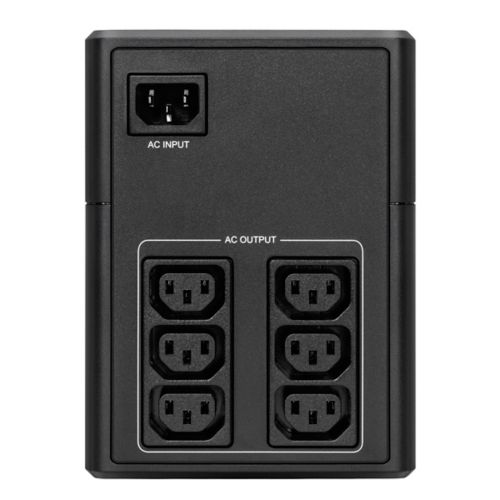

Receptacle
(6) C13
Number of Outputs C13
6
Voltage
230V
Output nominal voltage
230V
Feed type
1
Voltage type
AC
Runtime graph
Battery management
Automatic battery test, deep-discharge protection, cold-start capable
Battery rating
12 V / 7 Ah
Battery type
Sealed, lead-acid
Extended battery capability
No
Communication
USB port (HID compliant)
Expansion slots
No
Ethernet interface
No
Includes network card
No
Software compatibility
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
User interface
LEDs
Type of interface
USB
Potential free switch contact
No
Relative humidity
0-90% non-condensing
Temperature range
0° to 40°C (32° to 104°F)
Operating temperature – max
40 °C
Operating temperature – min
0 °C
Output apparent power
1200 VA
Input voltage – max
300 V
Input voltage – min
140 V
Output voltage – max
257 V
Output voltage – min
195 V
Secondary frequency – max
60 Hz
Secondary frequency – min
50 Hz
Battery quantity
2
Efficiency
95
Input voltage range
140-300 V
Output frequency
50/60 Hz
Output voltage range
195-257 V
Phase (input)
1
Phase (output)
1
Product Data Sheet
Datasheet Information eaton-dpq-5egen2-ups-datasheet-en-gb
