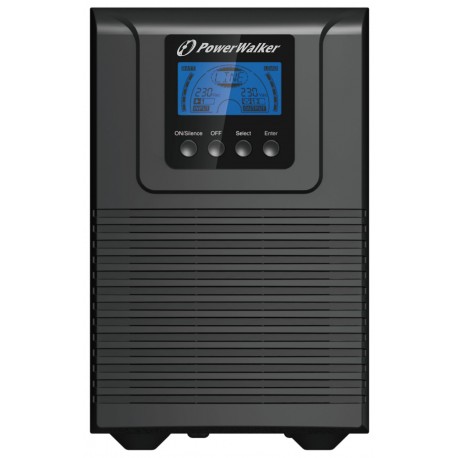

Powerwalker VFI 1000 VA (TG) (900 Watt) UPS

Features

  • Tower Design
  • 4 IEC Outlets
  • SNMP For Remote Access

Applications

  • Server Applications
  • Telecom Use
  • Highly Sensitive Hardware

For More Information & Support Please Contact Us Free On 0333 3051 037 Or Email Us At sales@upscentre.co.uk

Compare

Purchase this product now and earn 267 points! £222.50 Excl. VAT

Description

With true online double-conversion technology these UPS’s are designed with power in mind & the PowerWalker VFI (TG) series will also give you the best option for protecting your valued hardware from harm

Ideal Applications Include

  • Home/Office Environments
  • Telecom Application’s
  • Server Based Uses
  • Highly Sensitive Hardware

For more information or to discuss a particular project then please contact us on 0333 3051 037

Technical Specification

General features

Type

Online

Power capacity

1000VA / 900W

Output Power Factor

0.90

Input

Input Voltage Range

176-300 VAC or 80×285 VAC in bypass mode

Max THDi

<5%

Input PF

≥ 0.99 at full load

Frequency Range

40Hz – 70Hz

Frequency (Synchronized Range)

45Hz – 55Hz or 54Hz – 66Hz

Output

Nominal Output Voltage

220/230/240 VAC

Pure Sine Wave

Yes

THDv

≤2% Full Linear Load; ≤5% Non-Linear Load

Voltage Regulation (Bat. Mod.)

±2%

Frequency (Battery Mode)

±0,05Hz

Technical details

Load Crest Ratio

3:1

Transfer Time [AC to Battery]

0ms

Transfer Time [Inverter to Bypass]

4ms

Generator support

Yes

Overload Capacity

Line: constant @100%-105%; 1min @105%-130%; 10s @130%-150%; 300ms @>150%; bypass at higher; BAT: 10s @100%-150%; cut-off at higher

Charger

1.5A

Fan Logic

Always ON; Low speed: bypass/ECO or line mode with load below 70% High speed: Battery mode or line mode with load above 70%

Efficiency

LINE mode full Load

89.0%

Batteries and autonomy time

Batteries

2x 12V/9Ah

DC Voltage

2 x 12V

Recharge Time

4h to 90%

Full Load Backup Time

3.7min

Half Load Backup Time

10.5min

Connections and communication

IEC C13 Outlet

4

Input

C14

Software

WinPower

USB port

Yes

HID Support

Yes

RS-232 Port

Yes

Extension Slot

Yes, 1

EPO Port

Yes

Environment

Noise Level

< 45dB

Temperature

0°C – 40°C

Humidity

0% – 95% RH (non-condensing)

Logistics

IEC 62040-3 classification

VFI-SS-311

Package Content

UPS, Manual, Software CD, USB Cable, Input Power Cable, 2x IEC Cable

Manual Languages

EN/DE/PL

EAN

4260074978308

Width

144 mm

Height

229 mm

Depth

356 mm

Weight

9.3 kg

Additional Information

Download Technical Information Here
