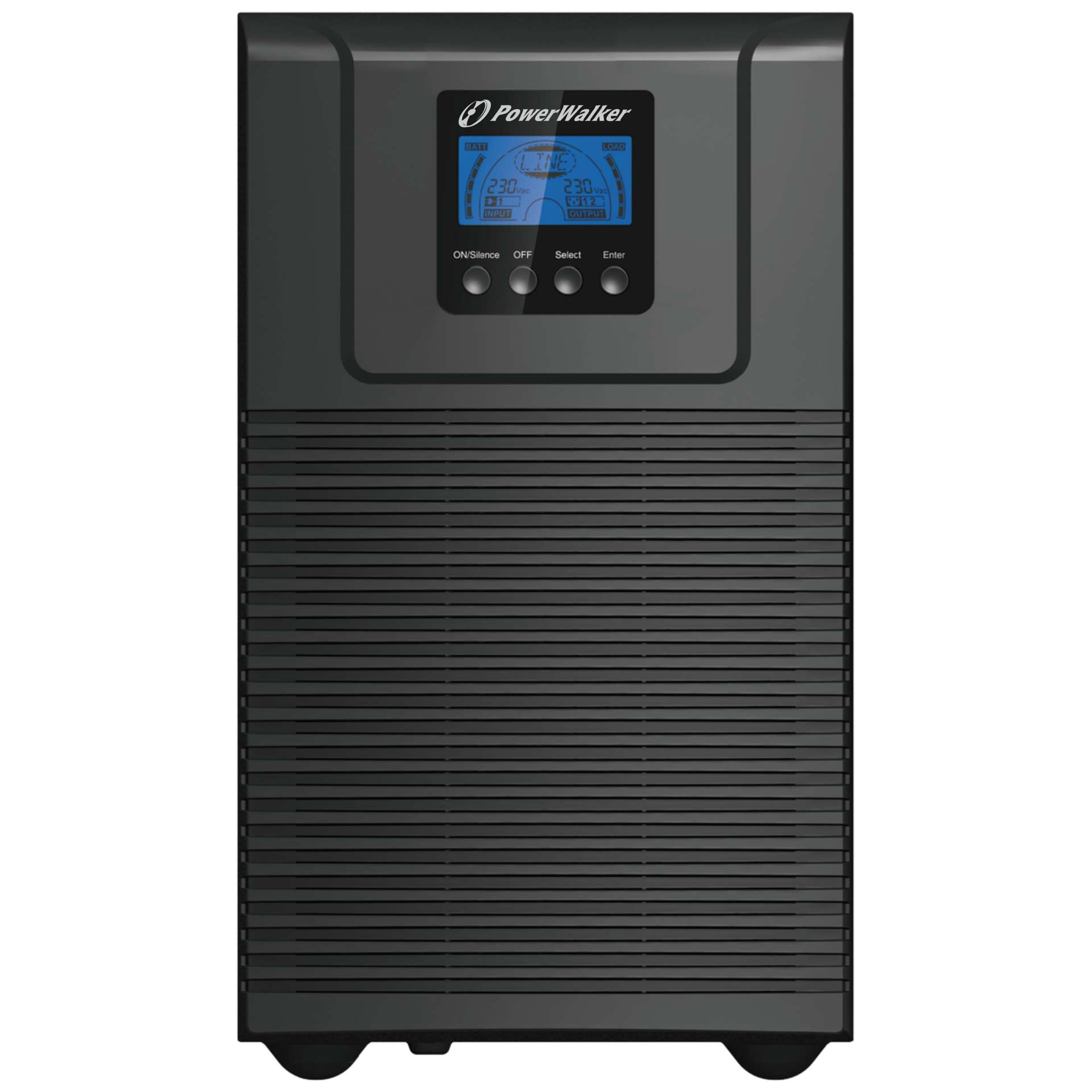

PowerWalker VFI TG 3000VA 2700W Online UPS
Features.
- Online technology with Power Factor 1.0
- Strong charger with adjustable current
- Wide input voltage range for all environments and support for AC generator
- Support for laser printers and ultrasound systems (allows connecting loads with half-wave imbalance)
- New LCD design – with estimated backup time and icon diagram
If you need further information or would like to discuss anything then please give us a call on 03333 051037 or email sales@upscentre.co.uk
£451.17 Excl. VAT
Description
The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring a unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA is equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%)
If you need further information or would like to discuss anything then please give us a call on 03333 051037 or email sales@upscentre.co.uk
Technical Information
| General features | |
| Type | Online |
| Power capacity | 3000VA / 3000W |
| Output Power Factor | 1.00 |
| Input | |
| Input Voltage Range | Voltage Range Low Line Transfer 110-160VAC ± 5% depending on load level Voltage Range Low Line Comeback 125-175VAC ± 5% depending on load level Voltage Range High Line Transfer 300VAC ± 5% Voltage Range High Line Comeback 290VAC ± 5VAC |
| Max THDi | ≤ 5% @ 205-245VAC; THDu ≤ 1.6% @ input and full linear load condition |
| Input PF | ≥ 0.99 at full load |
| Frequency Range | 40Hz – 70Hz |
| Frequency (Synchronized Range) | 47Hz – 53Hz or 57Hz – 63Hz |
| Output | |
| Nominal Output Voltage | 200/208/220/230/240 VAC |
| Pure Sine Wave | Yes |
| THDv | ≤2% Full Linear Load; ≤4% Non-Linear Load |
| Voltage Regulation (Bat. Mod.) | ±1% |
| Frequency (Battery Mode) | ±0,1Hz |
| Technical details | |
| Load Crest Ratio | 3:1 |
| Transfer Time [AC to Battery] | 0ms |
| Transfer Time [Inverter to Bypass] | 4ms |
| Generator support | Yes |
| Overload Capacity | Line: Warning @100%-110%; Bypass @>110%; BAT: Warning @100%-110%; 30s @110%-130%; Shutdown @>130% |
| External Battery Connection | Yes |
| Charger | 1A / [2A] / 4A / 6A / 8A |
| Protection | Surge protection up to 7KV |
| Fan Logic | Always on, automatic speed control |
| Efficiency | |
| LINE mode full Load | 91.0% |
| Batteries and autonomy time | |
| Batteries | 6x 12V/9Ah |
| DC Voltage | 6 x 12V |
| Recharge Time | 3h to 90% |
| Full Load Backup Time | 2.96min |
| Half Load Backup Time | 10.1min |
| Connections and communication | |
| IEC C13 Outlet | 8 |
| IEC C19 Outlet | 1 |
| Programmable Outlets | Yes |
| Input | C20-UK |
| Software | ViewPower |
| USB port | Yes |
| RS-232 Port | Yes |
| Extension Slot | Yes, 1 |
| EPO Port | Yes |
| RJ-45/RJ-11 protection | Yes |
| Environment | |
| Noise Level | < 50dB |
| Temperature | 0°C – 40°C |
| Humidity | 20% – 95% RH (non-condensing) |
| Logistics | |
| IEC 62040-3 classification | VFI-SS-111 |
| Package Content | UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable |
| Manual Languages | EN/DE/PL/RU |
| EAN | 4260074980028 |
| Width | 190 mm |
| Height | 318 mm |
| Depth | 421 mm |
| Weight | 28 kg |
