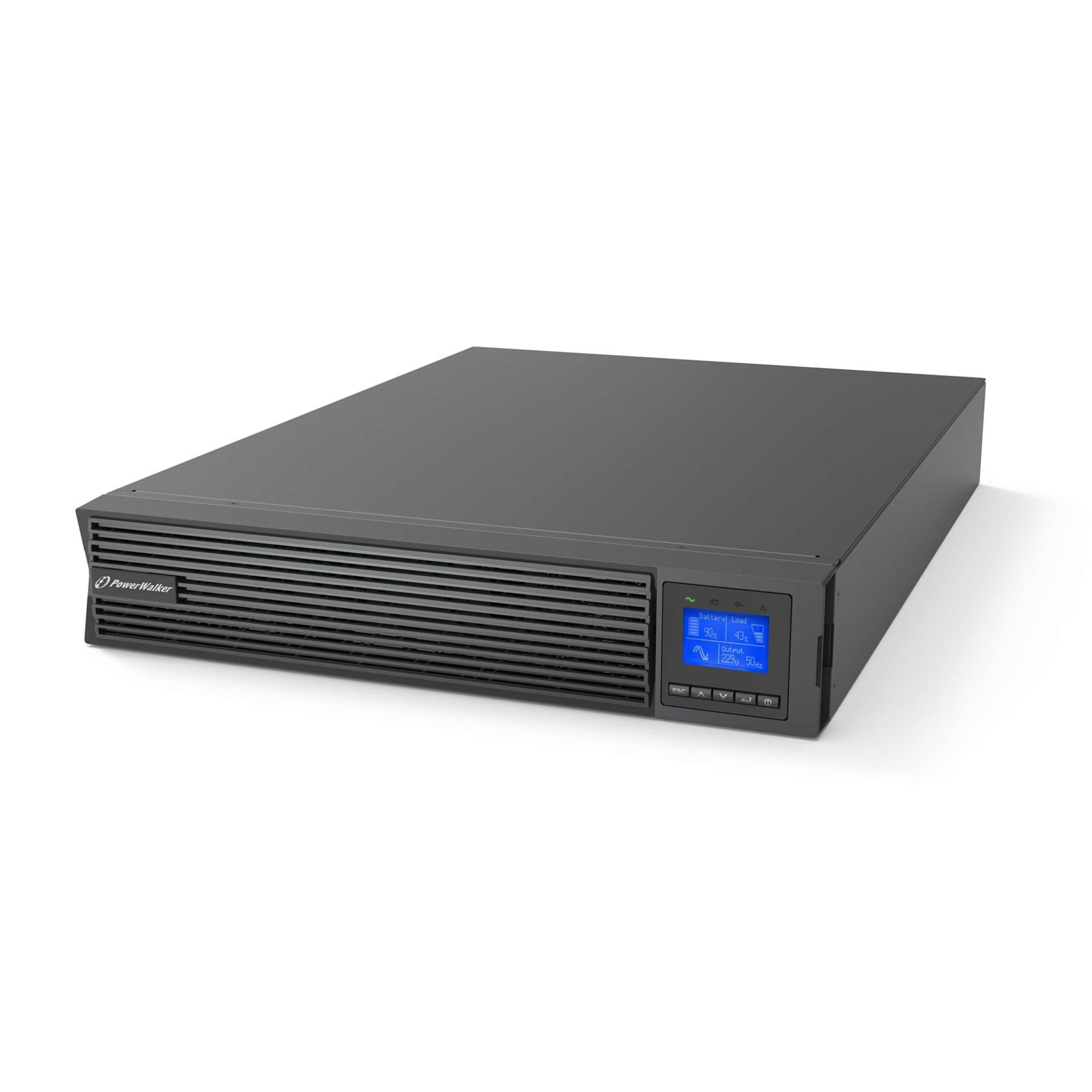

PowerWalker VFI 3000 ICR IoT UK 3000VA 3000W Rack UPS
Features & Benifits
- IoT Solution with the PW-WinPower App
- Output Power Factor 1.0
- Optimized Battery Management (OBM) – for longer Battery Life
- EBM Auto-Detection for easy setup of External Baterry Packs
- Hot-Swappable Batteries
- Built-in ethernet port offers Modbus TCP/ IP
For more information please feel free to contact us on 0330 043 2025
£575.21 Excl. VAT
Description
The PowerWalker VFI 1000-3000 ICR IoT series is the next generation of UPS, offering an intuitive App for remote monitoring via cloud. The UPS is quickly setup and easy to maintain, and it provides the ability to review the workflow and troubleshoot instantly regardless of time and place. This cloud based monitoring increases the availability and quality of traditional monitoring, while at the same time allowing room for cost reduction, scalability, and trend analysis.
This UPS series utilizes double conversion (Online) technology and features unity power factor, ensuring the availability of your mission critical equipment and providing clean output power to your sensitive loads. Multiple optional accessories such as external battery packs, communication cards and a WLAN adapter enhance the functionality of the UPS.
Technical Specs
Input
| Input Voltage Range | 160-300V 100% load, 110-160V derating to 50% load linearly |
| Frequency Range (Input) | 40 ~ 70 Hz |
Output
| Minimum Transfer Time | 4 ms |
| Maximum Transfer Time | 10 ms |
| Waveform Type | Pure Sine Wave |
| Output Capacity | 3000 VA |
| Output Wattage | 3000 Watts |
| Crest Factor | 3:1 |
| Frequency Range (Output) | +/- 0.2 Hz |
| Power Factor | 1 |
Display/Warnings
| Display Screen | Yes |
Battery
| Typical backup time at half load | 10.1 mins |
| Typical backup at full load | 3.7 Minutes |
| Typical Recharge Time | 3 hours |
| Battery Type | Sealed Lead Acid |
| Number of Batteries | 6 |
| Battery Voltage | 12 V |

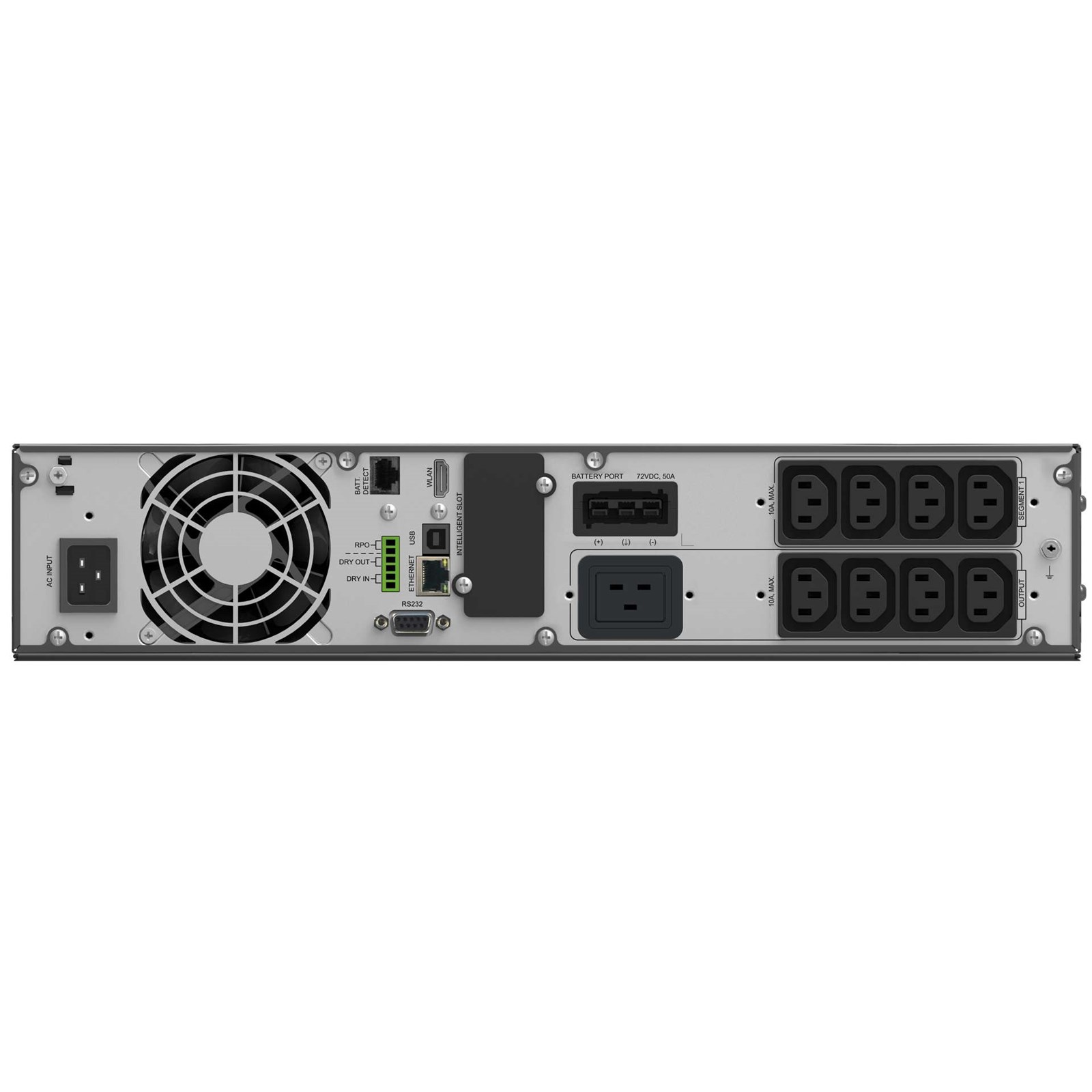

Interfaces/Ports
| Input Connection type | 1 x C20-UK |
| Output Connections | 8 x IEC C13 1 x IEC C19 |
| Interface Port | 1 x RS-232 |
| RJ-45 Ports | 1 x RJ-45 |
| USB Ports | 1 x USB-B 2.0 |
Environmental
| Operating Temperature | 0 ~ 40 °C |
| Operating Humidity | 0 ~ 95 % RH |
| Noise Level | < 50 dB |
Physical
| Form Factor | UPS |
| Case Colour | Black |
| In The Box | UPS Input Power Cable 2 x IEC Cable USB Cable Tower Holder Manual Cable Locker Rack Ears |
| Width | 438 mm |
| Depth | 600 mm |
| Height | 86 mm |
| Weight | 26.2 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Main Colour | Black |
Item Details
| Manufacturer | PowerWalker |
| Manufacturer Code | 10122211 |
| EAN | 4260074983173 |
| Condition | New |
