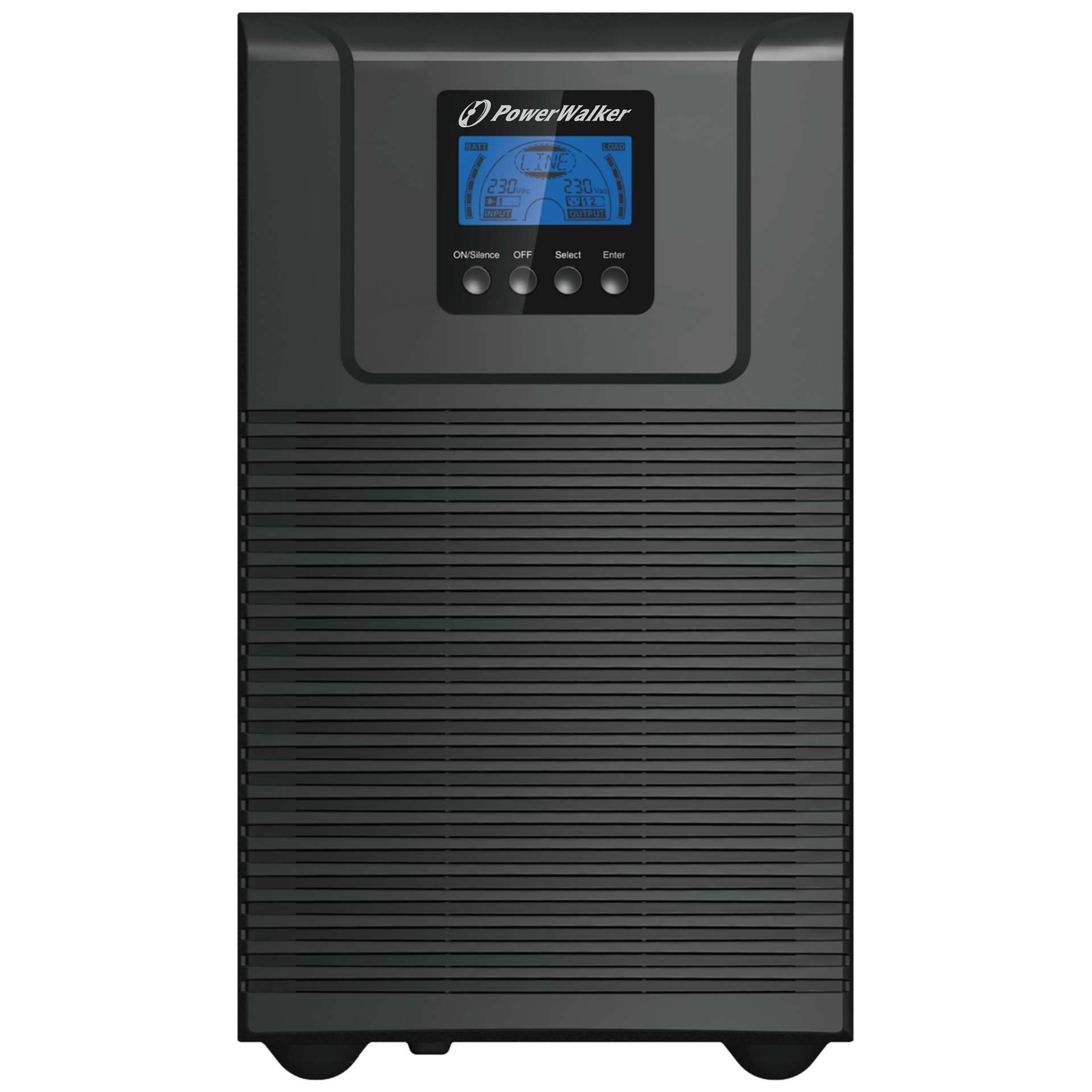

PowerWalker VFI TG 2000VA 1800W Online UPS

Features.

  • Online technology with Power Factor 1.0
  • Strong charger with adjustable current
  • Wide input voltage range for all environments and support for AC generator
  • Support for laser printers and ultrasound systems (allows connecting loads with half-wave imbalance)
  • New LCD design – with estimated backup time and icon diagram

If you need further information or would like to discuss anything then please give us a call on 03333 051037 or email sales@upscentre.co.uk

Compare

Purchase this product now and earn 466 points! £388.33 Excl. VAT

Description

The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring a unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA is equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%)

If you need further information or would like to discuss anything then please give us a call on 03333 051037 or email sales@upscentre.co.uk

Downloadable Information

General Features
Type Online Single Phase (VFI)
Phases (IN-OUT) 1-1
Form Factor Tower
Power Capacity 2000VA / 1800W
Output Power Factor 0.90
Input
Input Voltage Range 176-300 VAC or 80-285 VAC in Bypass Mode
Max THDi ≤5%
Frequency Range 40Hz – 70Hz
Frequency (Synchronized Range) 45Hz – 55Hz or 54Hz – 66Hz
Output
Waveform Pure Sine Wave
Nominal Output Voltage 220/230/240 VAC
THDv ≤2% @ 100% linear load, ≤5% @ 100% non-linear load
Voltage Regulation (Battery Mode) ±2%
Frequency (Battery Mode) ±0.05Hz
Input & Output Connectors
Input Connector C14
Output Type IEC
IEC C13 4
Technical Details
LINE Mode Efficiency [%] (Full Load) 90.0
Transfer Time (AC / Line Mode or Battery Mode to ECO Mode) [ms] 10ms
Transfer Time (AC / Line Mode to Battery Mode) [ms] 0ms
Transfer Time (ECO Mode to AC / Line Mode or Battery Mode) [ms] 10ms
Transfer Time (Line Mode or Battery Mode to Bypass Mode) [ms] 4ms
Load Crest Ratio 3:1
Additional Features ECO Mode Available, CVCF Mode Available, LCD Display, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator
IEC 62040-3 classification VFI-SS-111
Batteries and Autonomy
Batteries 4x 12.0V/9.0Ah
DC Voltage 4x 12.0V
Recharge Time 4h to 90%
Full Load Backup Time [min] 3.8
Half Load Backup Time [min] 11.0
Charger 1.5A
Communication
Communication USB Type B – for Monitoring Software, RS-232, Management Card Slot
Software WinPower
Environment
Noise Level < 50dB
Fan Logic Always on, Automatic Speed Control
Temperature 0°C – 40°C
Humidity 0% – 95% RH (non-condensing)
IP IP 20
Logistics
Package Content Input Power Cable, Manual, 2x IEC Cable, USB Cable, UPS
Manual Languages DE, PL, EN
EAN 4260074978315
Product Dimensions (DxWxH) [mm] 399 x 190 x 328 mm
Product Weight [kg] 17.2
Package Dimensions (DxWxH) [mm] 500 x 324 x 464 mm
Package Weight [kg] 20.0
Pcs. per Outer Carton 1
Pcs. per Layer 7
Pcs. per Pallet 14
Pcs. per Pallet [Oversized] 28
