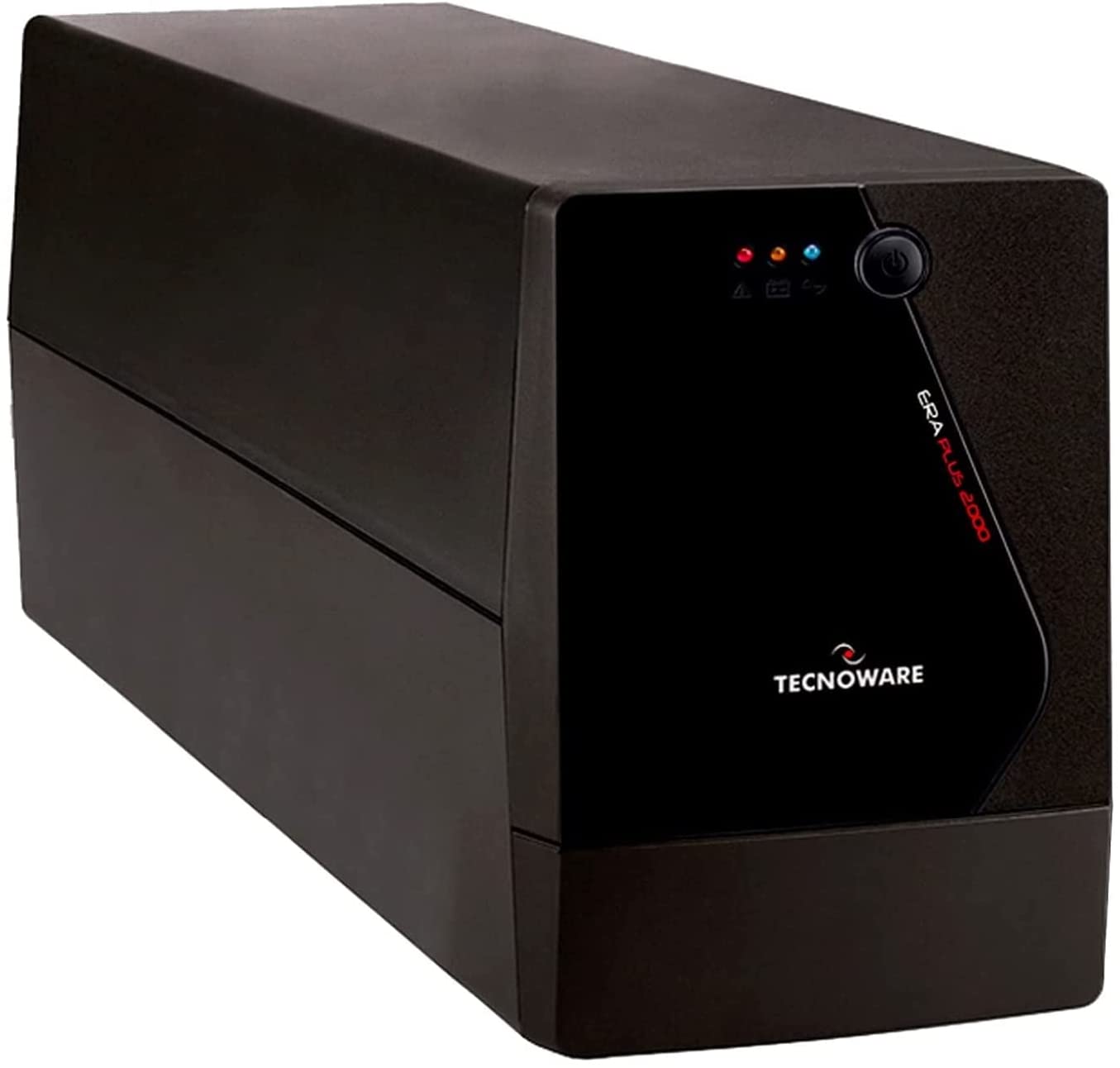

Tecnoware ERA PLUS 2500VA 1750Watt UNIVERSAL TOGETHER ON UPS
- Complete protection against blackout and power surges (overvoltages and under voltages)
- Remote On/Off Feature Enables The UPS To Be Controlled Remotly
- Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fibre modem, switch/router, and cash registers.
- Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
- AVR Automatic Voltage Regulator electronic circuit
- n°2 universal output sockets and n 1 input cable UK
- outputs socket protected against blackout
- outputs socket protected against overvoltages
- multifunction LED and on-off button
For further support & information then please do not hesitate to contact us on 0330 027 1309 or email support@upscentre.com
£125.00 Excl. VAT
Out of stock
Description
UPS ERA PLUS 2500VA, 2 12V 9Ah batteries, It has 1 IEC input and 6 IEC outputs protected against Black-Out, overvoltages and undervoltages. Line Interactive Plus technology. 13x18x32 cm, Weight 14 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.
Technical Information
Technical data
| Code | FGCUPSLIAP5020RO |
| Nominal power | 2500 VA |
| Active power | 1750 W |
| Power factor | 0,7 |
| Technology | Line Interactive with stabilizer |
| Cooling | Natural |
| Audible noise | < 40 dBA to 1 m |
| Dimension (UPS) WxHxD | 13×18,2×32 cm |
| Dimension (with packing) WxHxD | 23,2×27,3×39 cm |
| Weight | 8,6 Kg |
| Input | |
| Number of phases | 1Ph+N |
| Nominal voltage | Single-phase 230Vac |
| Input voltage range | +20%/-25% |
| Nominal frequency | 50/60 Hz (automatic selection) |
| Input frequency range | +/-5% |
| Output | |
| Number of phases | 1Ph+N |
| Nominal voltage | Single-phase 230Vac |
| Voltage regulation (Line mode) | AVR (Automatic Voltage Regulation) |
| Voltage regulation (Battery mode) | +/-5% |
| Frequency | 50/60 Hz (automatic selection) |
| Inverter waveform | Modified sinewave |
| Overload capability | < 130 % |
| Transfer time | 2 ms (typical) |
| Battery | |
| Type | Lead acid, sealed, maintenance free |
| Backup time (typical) | 10-90 min |
| Environmental specification | |
| Working temperature | From 0 to 55 °C (reccomended from 20 to 25 °C) |
| Humidity | < 95% without condensation |
| Maximum altitude | 3000 m |
| IP protection | IP20 |
| Certifications | CE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3) |
