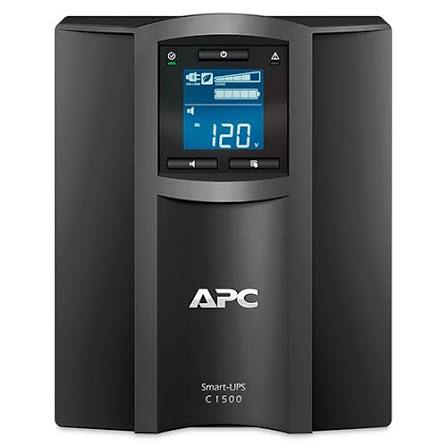

APC Smart-UPS C 1500VA / 900 Watt LCD with APC SmartConnect
APC Smart-UPS 1500VA C LCD 230V with SmartConnect
Featuring
- Green mode – excellent operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- Pure sine wave output on battery – simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
- LCD status display – provides key UPS status at a glance, multiple status indicators with load and battery bar graphs
- High online efficiency – reduces utility costs, generates less heat
- Cold-start capable – provides temporary battery power when the utility power is out
- Temperature-compensated battery charging – prolongs battery life by regulating the charge voltage according to battery temperature
- Intelligent battery management – Maximizes battery performance, life, and reliability through intelligent, precision charging
- Power conditioning – protects connected loads from surges, spikes, lightning, and other power disturbances
- Temperature-compensated battery charging – prolongs battery life by regulating the charge voltage according to battery temperature
- Automatic restart of loads after UPS shutdown – automatically starts up the connected equipment upon the return of utility power
- Disconnected battery notification – warns when a battery is not available to provide backup power
- Network manageable – Provides remote power management of the UPS over the network
- Audible alarms – Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
- LED status indicators – quickly understand unit and power status with visual indicators
- Serial connectivity – Provides management of the UPS via a serial port
- USB connectivity – Provides management of the UPS via a USB port
- Disconnected battery notification – warns when a battery is not available to provide backup power
- Hot-swappable batteries – ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive failure notification – provides early-warning fault analysis ensuring proactive component replacement
- Resettable circuit breakers – enable a quick recovery from overload events
- Battery failure notification – provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Adjustable voltage-transfer points – maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable voltage sensitivity – provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
- Safety-agency approved – Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
If you require further information then please contact us on 03333 051 037 or email sales@upscentre.co.uk
£582.00 Excl. VAT
Description
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.
Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Technical Information
| Width | 171 mm |
| Weight | 24.1 kg |
| Depth | 439 mm |
| Height | 219 mm |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | Mini Tower |
| LED indicators | Y |
| Certification | C-tick, CE, CSA, GOST, UL 1778, VDE |
| Display | LCD |
| Packaging data | |
|---|---|
| Package width | 328 mm |
| Package height | 376 mm |
| Package depth | 595 mm |
| Cables included | USB cable |
| Software CD | Y |
| Resource CD | Y |
| Package volume | 27230 cm³ |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Logistics data | |
|---|---|
| Quantity per pallet | 18 pc(s) |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial interface | Y |
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Number of batteries supported | 1 |
| General | |
|---|---|
| Noise level | 45 dB |
| Output power | 900 W |
| Output power capacity | 1500 VA |
| Input frequency | 50/60 Hz |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Audible alarm(s) | Y |
| Surge energy rating | 459 J |
| Output frequency | 50/60 Hz |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Auto-restart | Y |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Automatic Voltage Regulation (AVR) | Y |
| Web-based management | Y |
| Temperature voltage compensation | Y |
