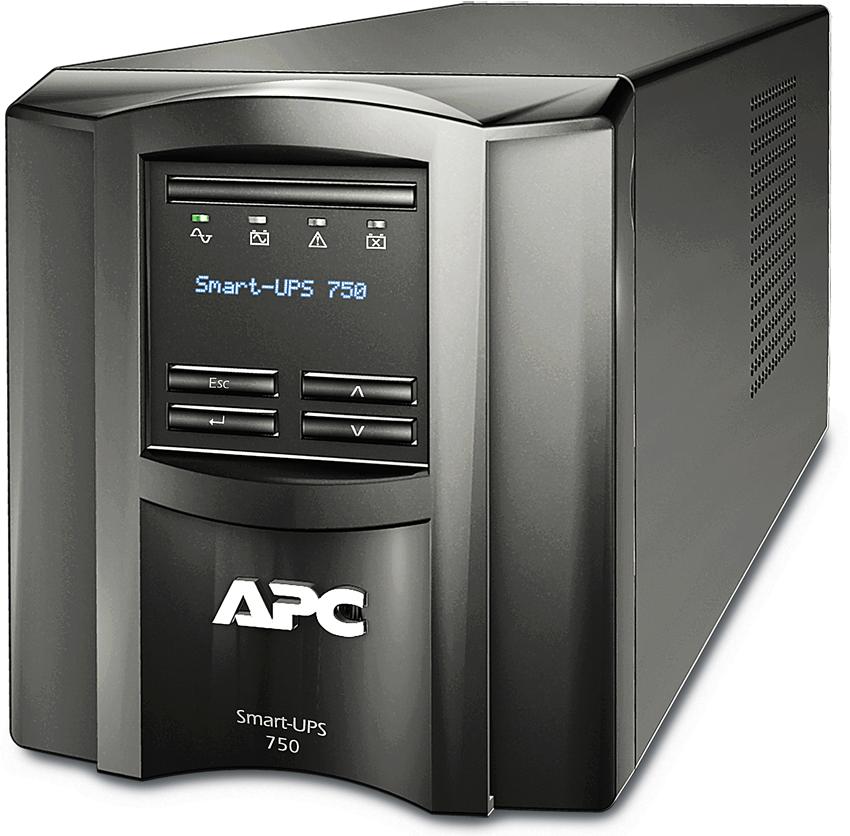

APC SMT 750i Smart UPS

This UPS gives 500W 750VA of power & is trusted to protect critical data and equipment from power problems, and supplies clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS units have extremely high efficiency at low, medium, and high load levels, making them ideal for today’s multi-core or virtualized servers that have varying load consumption.

For further support & information then please contact us on 0800 625 0051.

Purchase this product now and earn 300 points!£299.98 Excl VAT

Description

The APC Smart-UPS are an ideal solution at protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power as they offer digital line interactive sinewave technology & also feature a LCD display giving a clear status of the UPS while also giving a hot-swap battery option & various connectivity options.

  • Home or Small Office Use
  • PC Hardware Use
  • EPOS Hardware
  • CCTV Hardware
  • Server Based Applications
  • Telecom Based Applications

For information & support please contact us on 0800 625 0051 or email us at sales@upscentre.co.uk

Additional Information

Output

  • Output power capacity

    500Watts / 750VA

  • Max Configurable Power (Watts)

    500Watts / 750VA

  • Nominal Output Voltage

    230V

  • Output Voltage Distortion

    Less than 5% at full load

  • Output Frequency (sync to mains)

    47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal

  • Other Output Voltages

    220, 240

  • Topology

    Line Interactive

  • Waveform type

    Sine wave

  • Output Connections
    (2) IEC Jumpers (Battery Backup)
    (6) IEC 320 C13 (Battery Backup)
  • Transfer Time

    4ms typical : 8ms maximum

Input

  • Nominal Input Voltage

    230V

  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    IEC-320 C14

  • Cord Length

    1.83meters

  • Input voltage range for main operations

    160 – 280V

  • Input voltage adjustable range for mains operation

    151 – 302V

  • Number of Power Cords

    1

  • Other Input Voltages

    220, 240

Batteries & Runtime

Communications & Management

  • Interface Port(s)

    SmartSlot , USB

  • Control panel

    Multi-function LCD status and control console

  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : configurable delays

  • Emergency Power Off (EPO)

    Optional

  • Available SmartSlot™ Interface Quantity

    1

Surge Protection and Filtering

  • Surge energy rating

    540Joules

  • Filtering

    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height

    157mm , 15.75CM

  • Maximum Width

    138mm , 13.8CM

  • Maximum Depth

    358mm , 35.81CM

  • Net Weight

    13.18KG

  • Shipping weight

    14.23KG

  • Shipping Height

    301mm , 30.1CM

  • Shipping Width

    278mm , 27.8CM

  • Shipping Depth

    499mm , 49.9CM

  • Color

    Black

  • Units per Pallet

    24.0
