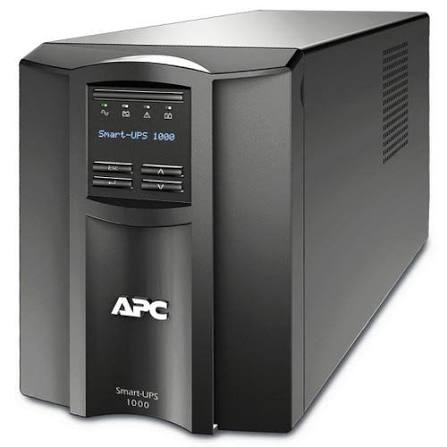

APC Smart UPS 1KVA LCD 230V Smart Connect
APC Smart UPS, UPS
The APC Smart-UPS C are an ideal solution at protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power as they offer digital line interactive sinewave technology & also feature a LCD display giving a clear status of the UPS while also giving a hot-swap battery option & various connectivity options.
- Pure Sinewave Output
- Push Button Circuit Breaker
- 8 Outputs
- LCD Display
- Serial & USB Communication Ports
For information & support please contact us on 03333 051 037 or email us at sales@upscentre.co.uk
£491.43 Excl. VAT
Description
The APC Smart-UPS are an ideal solution at protecting file servers, minicomputers, network switches, hubs, point of sale systems & ATMs from losing power as they offer digital line interactive sinewave technology & also feature a LCD display giving a clear status of the UPS while also giving a hot-swap battery option & various connectivity options.
- Home or Small Office Use
- PC Hardware Use
- EPOS Hardware
- CCTV Hardware
- Server Based Applications
- Telecom Based Applications
For information & support please contact us on 0800 625 0051 or email us at sales@upscentre.co.uk
Technical Information
| Product Summary | |
|---|---|
| Brand | APC |
| SKU | 10196165 |
| Manu Part # | SMT1000IC |
| Weight & dimensions | |
|---|---|
| Width | 171 mm |
| Weight | 18.9 kg |
| Depth | 439 mm |
| Height | 219 mm |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | Mini tower |
| LED indicators | Y |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH |
| RoHS compliance | Y |
| Display | LCD |
| Packaging data | |
|---|---|
| Package weight | 22.8 kg |
| Package width | 328 mm |
| Package height | 376 mm |
| Package depth | 595 mm |
| Cables included | RS-232,USB cable |
| Quick installation guide | Y |
| Software CD | Y |
| Resource CD | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 45 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Replacement battery cartridge | RBC6 |
| Logistics data | |
|---|---|
| Quantity per pallet | 12 pc(s) |

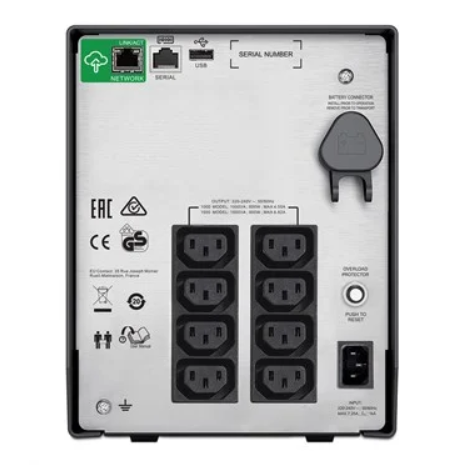

| Ports & interfaces | |
|---|---|
| USB port | Y |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler,IEC Jumpers |
| Power plug | C14 coupler |
| Serial interface | Y |
| SmartSlot | Y |
| USB port type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial ports quantity | 1 |
| General | |
|---|---|
| Output power | 700 W |
| Noise level | 41 dB |
| Output power capacity | 1000 VA |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Response time | 10 ms |
| UPS topology | Line-Interactive |
| Audible alarm(s) | Y |
| Waveform | Sine |
| Surge energy rating | 459 J |
| Output frequency | 50/60 Hz |
| Surge protection | Y |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Audible alarm modes | Alarm when on battery,Low battery alarm,Overload alarm |
| Automatic Voltage Regulation (AVR) | Y |
| Auto-restart | Y |
| Temperature voltage compensation | Y |
Additional Information
Download Technical Information APC SMART UPS 1000va UPS Information
Replacement Battery
These replacement batteries for this model would be the following.
