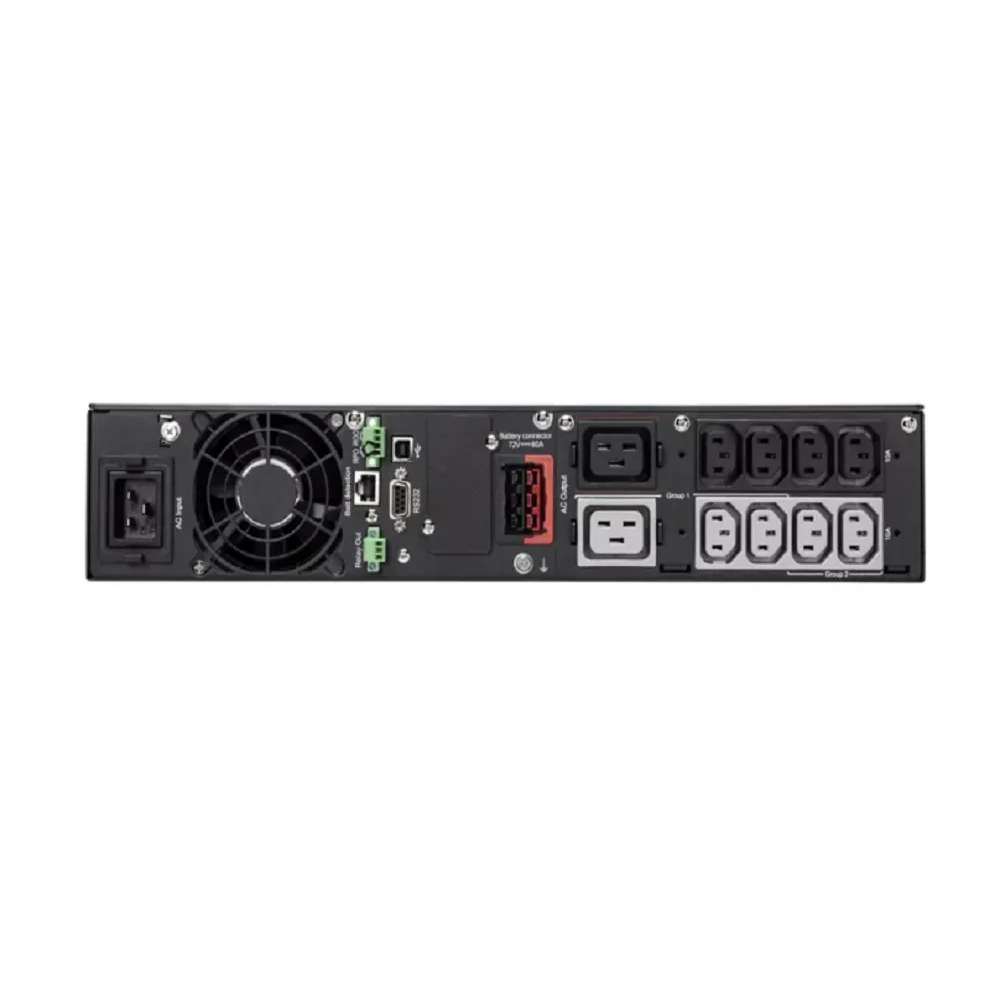

Eaton 5PX3000IRT2UG2BS 5PX Gen2 2U Desktop & Rackmount UPS Uninterruptible Power Supply 3000W/3000VA

Key Features & Benifits

Rackmount
Comes with a rackmount kit.
Output connectivity
Eight (8) IEC C13 and two (2) C19 output connections.
Stay connected, securely
Reduce risk of intrusion by installing a network card (sold separately).
Enhanced surge protection
Provides enhanced surge protection keeping your branch offices and IT closet equipment safe.
Form factor
Suitable for rackmounting and desktop tower installation (kits included).

For further support & information then please contact us on 03333 051 037 or email sales@upscentre.co.uk

Compare

Purchase this product now and earn 1,865 points!£1,558.33 Excl. VAT £1,554.17 Excl. VAT

Product Code: 5PX3000IRT2UG2BS Category:

Description

Eaton 5PX3000IRT2UG2BS 5PX Gen2 2U Desktop/Rackmount UPS

The Eaton 5PX3000IRT2UG2BS 5PX Gen2 2U Desktop/Rackmount UPS Uninterruptible Power Supply provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. This UPS offers powerful tools to monitor remotely, integrate with IT architecture and remotely deploy/maintain large installed UPS deployments.

Key Features

  • Rackmount
    Comes with a rackmount kit.
  • Output connectivity
    Eight (8) IEC C13 and two (2) C19 output connections.
  • Stay connected, securely
    Reduce risk of intrusion by installing a network card (sold separately).
  • Enhanced surge protection
    Provides enhanced surge protection keeping your branch offices and IT closet equipment safe.
  • Form factor
    Suitable for rackmounting and desktop tower installation (kits included).

Ease of Operation

The innovative graphical LCD display makes configuration of the 5PX3000IRT2UG2BS easy and intuitive. The UPS offers an easy start-up configuration wizard to simplify your UPS setup process. Remote management and firmware upgrades are available with an optional network management card (sold separately). Advanced battery management and hot-swappable battery enables ease of maintenance and flexibility.

Efficiency

The 5PX3000IRT2UG2BS delivers 11% more power to connected servers than other UPS thanks to its unity power factor capability. It is Energy Star 2.0 certified for maximum efficiency across the full operating range. Energy is metered for each individual outlet group and is visible directly on the display and through Eaton’s Intelligent Power Manager.

Secure and Resilient

Prioritise connected devices for maximum uptime of essential services. Easily manage power switching and disaster recovery with load segment control. Advanced virtualisation capabilities make the 5PX3000IRT2UG2BS perfect for Enterprise and Edge IT applications.

Standard Warranty: 3-Years (UPS), 2-Years (Battery)

Technical Specification

Specifications

Runtime

  • See images for runtime graph

Secondary Frequency – Max

  • 60 Hz

Output Waveform

  • Sine wave

Max Number of Battery Packs

  • 4

Wattage

  • 3000 W

Output Power Factor

  • 1

Form Factor

  • Rack/tower

Includes Network Card

  • No

Input Connection

  • C20

Input Voltage – Min

  • 150 V

Output Voltage – Max

  • 240 V

Secondary Frequency – Min

  • 50 Hz

Software Compatibility

  • Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

Battery Replacement

  • User replaceable

Battery Type

  • Lead-acid maintenance-free (replaceable)

Efficiency

  • 98

Construction Type

  • 482.6 mm (19 inch) device

Output Voltage – Min

  • 200 V

Colour

  • Black/silver

Extended Battery Capability

  • Yes

Output Voltage Range

  • 230 V (+6%/-10%)

Topology

  • Line-interactive

Back-Up Time

  • 9 min

Input Nominal Voltage

  • 230V default (200/208/220/230/240V)

Input Frequency Range

  • 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

Input Voltage – Max

  • 294 V

Voltage Type

  • AC

Phase (Output)

  • 1

Battery Management

  • ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

Auto Shutdown Function

  • Yes

Number of Outputs C13

  • 8

Number of Outputs C19

  • 2

VA Rating

  • 3000 VA

Potential Free Switch Contact

  • Yes

Receptacle

  • 8 x C13
  • 2 x C19

Phase (Input)

  • 1

Noise Level

  • <40 dB at 1 metre

Feed Type

  • 1

User Interface

  • Multilingual graphical LCD display

Battery Quantity

  • 6

Rack Size

  • 2U

Voltage

  • 230V

Input Cord Length

  • 1.8m

Temperature Range

  • 0°C to 40°C (32°F to 104°F)
  • Batteries recommended max. 25°C (77°F)

Communication

  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)

Relative Humidity

  • 0% – 90% non-condensing

Rack Mounting Kit

  • Yes

Output Frequency

  • 50/60 Hz

Type of Interface

  • Other

Primary Frequency – Min

  • 47 Hz

Battery Rating

  • 12 V / 9 Ah

Type

  • UPS

Output Nominal Voltage

  • 230V default (200/208/220/230/240V)

Expansion Slots

  • One slot for optional communication card

Input Voltage Range

  • 160-294 V (adjustable to 150 V-294 V)

Nominal Frequency

  • 50-60 Hz

Primary Frequency – Max

  • 70 Hz

Altitude

  • 3000 m

Product Length/Depth

  • 770 mm

Product Height

  • 240 mm

Product Width

  • 588 mm

Product Weight

  • 32.638 kg

Compliances

  • IEC/EN 62040-1
  • IEC/EN 62040-2
  • IEC/EN 62040-3
  • RoHS Compliant
  • REACH
  • UL 1778
  • CSA 22.2

Certifications

  • CE
  • cTUVus
  • EAC
  • Cm
  • UKCA
  • Ukr
  • KCC
  • ENERGY STAR certified

Package Contents

  • 1 x 5PX3000IRT2UG2BS
  • 1 x Input cable
  • 1 x Rack-mounting kit
  • 2 x Supports for tower mounting
  • 1 x Cable locking system
  • 1 x USB cable
  • 1 x Serial cable
  • 2 x IEC-IEC cables
  • 1 x Quickstart guide
  • 1 x Safety instructions
  • 1 x BS input cord
