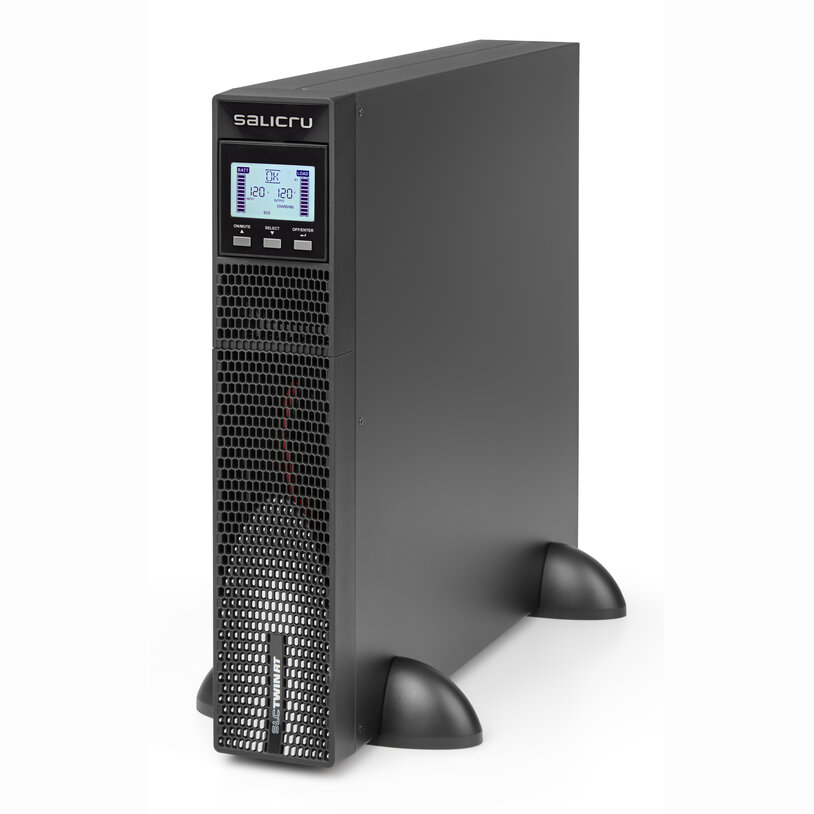

Salicru SLC TWIN RT2 1500VA 1500W On-Line Double-Conversion Tower / Rack UPS
Features & Benifits
Output power capacity: 2000 Watts / 2000VA
Recharge time 3 hours
2U Rack Height
Online double-conversion technology
Unity output power factor PF=1
Convertible tower/rack format
Swivel-mount control panel
Smart slot for SNMP and relays
Available backup extensions
Eco-mode operation
Management software
Pure sine wave output
Backup battery for mains interruptions
Two-year warranty
Output Connections – 8 x IEC C13
Input Connections – IEC
If you require any additional support or information then please contact us on 03300271309 or email sales@upscentre.co.uk
£633.33 Excl. VAT
Description
This Salicru UPS series by Salicru is perfect for the protection of applications that require high-level security in the event of any type of electrical disturbance, such as IT servers, voice and data networks, CAD/CAM, document management, unified communications (UC), and video streaming, all in a compact format.
This (UPS) is a cutting-edge continuity solution for the power protection of essential systems. It combines the most dependable online double-conversion technology available on the market with a unity output power factor (VA=W) to power systems with a large energy demand while maintaining great operating efficiency. It includes a 2U rack height that converts to a tower format, as well as a swivel-mount LCD display panel that adjusts to the needs of the orientation. Additional extended battery modules are also available for applications that demand more runtime.
In terms of communication, it has an RS-232/USB interface that is compatible with the HID protocol, as well as a smart slot that can be used to store an SNMP card, MODBUS cards, or free contacts. Software for monitoring and managing protected devices is also available. Other features include a frequency converter that can run at 50/60 or 60/50 Hz, an emergency stop (EPO), and outputs that can be set for critical and non-critical loads.
Technical Specifications
Technical Specifications
Technology On-line double-conversion
Format Convertible tower/rack
Input
Rated voltage 200 / 208 / 220 / 230 / 240 V (1)
Voltage range 60% load 110 ÷ 300 V up to 60% load
Rated frequency 50 / 60 Hz (auto-detection)
Frequency range ±10 Hz
Total harmonic distortion (THDi) ≤5%
Auto~detection of frequency Yes
Output
Power factor 1
Waveform Pure sine wave
Rated voltage 200 / 208 / 220 / 230 / 240 V (1)
Voltage accuracy ±1%
Power (VA/W) 3000 / 3000
Total harmonic distortion (THDv) < 2% linear load / < 4% non-linear load
Synchronised frequency ±3 Hz
Free running frequency ±0.1 Hz
Frequency 50 / 60 Hz
On-line performance ≥89 ÷ 91%
Eco-mode performance ≥95 ÷ 97%
Admissible overloads < 130% for 5 min / < 140% for 30 s / <150 % for 1.5 s / 150 % for 100 ms
Socket type IEC
No. Of sockets 8 + 1
Programmable sockets Yes, for critical / non-critical loads (4/4)
Bypass
Rated voltage 200 / 208 / 220 / 230 / 240 V (1)
Frequency range 50/60Hz ±10 Hz
Battery
Battery type Pb-Ca sealed, AGM, maintenance-free
Charge type I/U (constant current/constant voltage)
Recharge time 3 hours to 95%
Charger
Temperature voltage compensation Yes
Communication
Ports USB-HID / RS-232
Intelligent slot Slot for SNMP/potential-free contacts/ MODBUS
Monitoring software For Windows, Linux and Mac
Indications
Type LCD + keypad
Other Functions
Cold start (start-up from batteries) Yes
Emergency stop (EPO) Yes
ADSL/fax/modem transient protector Yes
Operating Modes
Frequency converter (CVCF) Yes (2)
General
Operating temperature 0° C ÷ 55° C(3)
Relative humidity Up to 95%, non-condensing
Maximum operating altitude 2,400 masl (power degradation up to 5,000 m)
Acoustic noise at 1 metre < 50 dB
Standards
Safety EN-IEC 62040-1
Electromagnetic compatibility (EMC) EN 62040-2(C2)
Operation EN 62040-3
Quality and environmental management ISO 9001 & ISO 14001
Dimensions
Depth (mm) 605
Width (mm) 438
Height (mm) 88
Weight
Weight (kg) 27.5
Software & Other Useful Information
For Software downloads & Other Useful Information Please Follow the Link Here To Salicru’s Website
